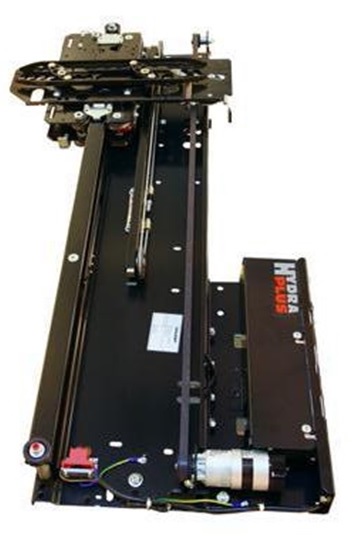

Hydra Plus is a door system which can be used with any kind of application from residential buildings up to highly frequented office buildings and hotels.
The compact construction ensures high flexibility also for elevator modernization purposes.
| TYPE
|
ECO PLUS
|
MIDI PLUS
|
|---|---|---|
| Drives
|
3-phase PMSM
Vector control |
3-phase PMSM
Vector control |
| Power supply
|
(127V;2A ) ±20%Univ. (230V;1A) ±20%
50/60 Hz |
(127V;2A ) ±20%Univ. (230V;1A) ±20%
50/60 Hz |
| Class protection
|
IP20
|
IP20 (IP54 on request)
|
| Maximum movable masses
(car and landing door panels) |
130 kg
|
300 kg
|
| Car door lock (Optional)
|
Available
|
Available
|
| Self-learning
|
Available
|
Available
|
| Protective device - Power supply
|
24V DC+ 10%
150 mA |
24V DC+ 10%
150 mA |
| Emergency battery drive
|
18-26 VDC
max 5A |
18-26 VDC
max 15A |

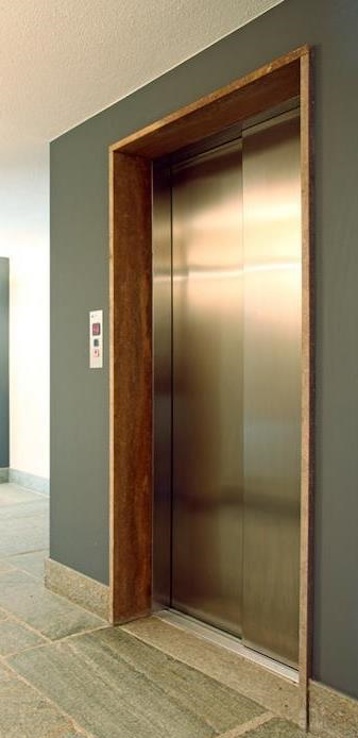

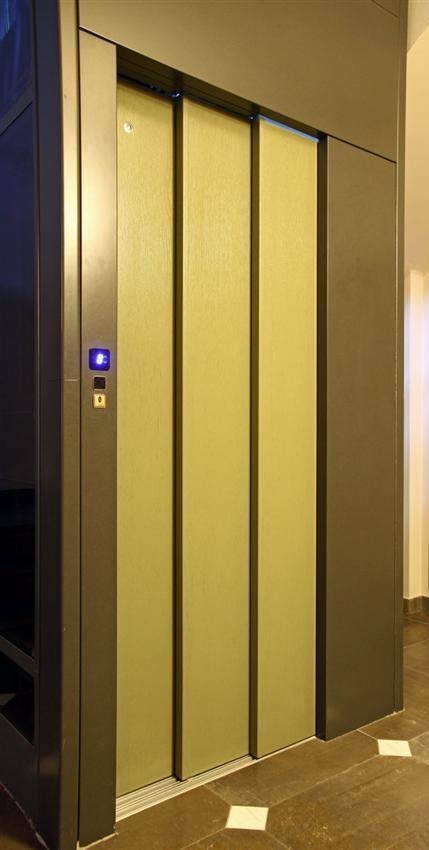

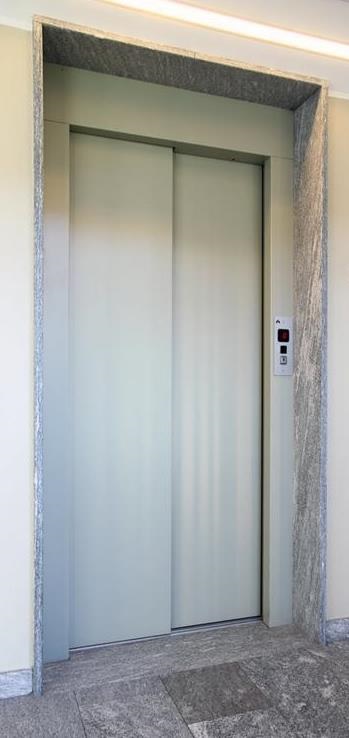

Hydra is the Wittur multifunctional door designed for maximum application flexibility. The wide variety of executions can be used with any kind of application, from residential buildings up to office buildings and hotels.
